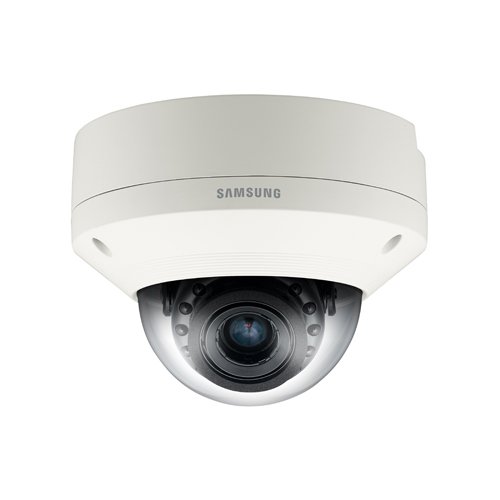

Samsung SNV-6084R 2MP 1080p Full HD Network IR Dome Kamera

Samsung SNV-6084R 2MP 1080p Full HD Network IR Dome Kamera

• Max 2M (1920 x 1080), Full HD(1080p) resolution
• 60fps @ 1920 x 1080
• Min.Illumination 0Lux (IR Distance 15m)
• Enhanced WDR (100dB)/ 30fps @2MP WDR
• Built-in 3~ 8.5mm(2.8x) Motorized Varifocal lens
• H.264 & MJPEG dual codec
• Multi-crop streaming
• Face/Motion/Audio Detection
• UPnP (Auto Port Forwarding)
• Simple Focus, Defog, DIS support
• Day & Night(ICR), SD/SDHC/SDXC Memory slot
• IP66, IK10 Grade
• PoE supports

Ürünle İlgili Teknik Bilgiler ;

Pan-Tilt-Rotate

• Pan Range : 0° ~ 354°

• Tilt Range : 0° ~ 67°

• Rotate Range : 0° ~ 355°

Network

• Ethernet : RJ-45 (10/100BASE-T)

• Video Compression Format : H.264, MJPEG

• Resolution : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180

• Max Framerate : H.264 : Max. 60fps at all resolutions MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps

• Smart Codec : Yes

• Video Quality Adjustment : H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control

• Bitrate Control Method : H.264 : CBR or VBR, MJPEG : VBR

• Steaming Capacity : Multiple streaming (Up to 10 profiles)

• Audio I-O : Selectable (Mic in / Line in), Max output level : 1 Vrms Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm

• Audio Compression Format : G.711 u-law /G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps

• Audio Communication : Bi-directional audio

• IP : 1

• Protocol : TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour

• Security : HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication

• Streaming Method : Unicast /Multicast

• Max User Access : 10 users at unicast mode

• Memory Slot : SD/SDHC memory slot

• ONVIF Conformance : Yes

• Webpage Language : English, French, German, Spanish, Italian, Chines, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek

• Web Viewer : Supported OS : Windows XP /VISTA/7, MAC OS Supported Browser: Internet Explorer 6.0 or Higher, Firefox, Google Chrome, Apple Safari

• Central Management Software : SmartViewer 4.0

Operational

• Camer Title : Off / On (Displayed up to 45 characters)

• Day And Night : Auto (ICR) / Color / B/W / External / Schedule

• Backlight Compensation : Off / BLC /HLC / WDR

• Wide Dynamic Range : Off / On (Full HD WDR)

• Contrast Enhancement : SSDR (Samsung Super Dynamic Range) (Off /On)

• Digital Noise Reduction : SSNRIII (2D +3D noise filter) (Off /On)

• Motion Detection : Off / On (4ea 4points polygonal zones

• Privacy Masking : Off / On (32 zones with 4 points of polygonal)

• Sens-up frame integration : Off /Auto (2x ~ 60x)

• Gain Control : Off / Low / Medium / High

• White Balance : ATW / AWC / Manual / Indoor /Outdoor

• Electronic Shutter Speed : Auto / A.FLK / Manual

• Flip-Mirror : Off /On

• IVA : Yes

• IVA detail : Tampering, Virtual line, Enter/Exit, Appear / Disappear, Audio detection, Face detection

• Alarm I-O : Input 1ea /Output 1ea (Relay)

Video

• Imaging Devise : 1/2.8″ PS Exmor 2.38M CMOS

• Total Pixels : 1,952(H) x 1,116(V)

• Effective Pixels : 1,944(H) x 1,104(V)

• Scanning System : Progressive

• MinIllumination TBD : Colour : 1Lux (F1.2, 5OIRE), 0.017Lux (Sens-up 60x) B/W : 0.08Lux (F1.2, 5OIRE), 0.001Lux (Sens-up 60x)

• S-N Ratio : 50dB

• Video Output : CVBS : 1.0 Vp-p / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation, DIP connector type

Lens

• Focal Length : 3~ 8.5mm (2.8x) Motorized vari -focal

• Max Aperture Ratio : F1.2

• Angular Field of View : H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21.0°(Tele)

• Min Object Distance : 0.5m (1.64ft)

• Focus Control : Simple focus (Motorized V/F) / Manual Remote control via network (Manual, Simple focus)

• Lens Type : DC auto iris

• Mount Type : Board-in type

Electrical

• Input Voltage -Current : 12V DC, 24V AC PoE(IEEE802.3af)

• Power Consumption : Max. 9.5W (Heater off), Max. 13.5W (24V AC – Heater on)

Environmental

• Operating Temperature-Humidity : 24V AC : -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH 12V DC, PoE : -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH

• Ingress Protection : IP66 Grade (Waterproof)

Chipset

• Chipset : WisenetIII

Mechanical

• Colour-Material : Ivory /Aluminium

• Dimensions WxHxD : Ø160.0 x 118.5mm (Ø6.3″ x 4.67″)

• Weight : 960g (2.12 lb)
