İndirim!

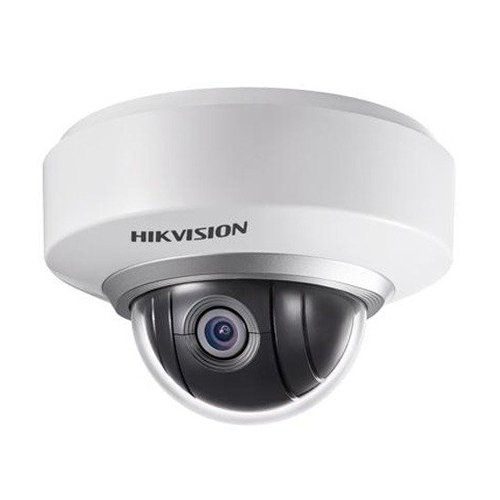

HAIKON DS-2DE2103-DE3-W 1MP 3-11MM POE MINI PTZ DOME IP KAMERA

~~₺2,000.00~~ ₺1,700.00

1 MP Mini PTZ Dome Kamera

1/ 3 inç PS CMOS,3X Optik (3.6-11 mm)zoom,16X Dijital Zoom,

Pan:0-350 derece;Tilt:0-90 derece (Auto Flip ),0.05lux (Renkli),

ICR,DWDR,3D-DNR,BLC,SDCard Desteği (64 GB),

Ses&Alarm Giriş/Çıkışı,IP54,12VDC,POE.

Kategoriler: Güvenlik Kameraları, IP Güvenlik Kameraları

Açıklama
Yorumlar (0)

DS-2DE2103-DE3/W Camera
Image Sensor:	\|	1/3″ Progressive Scan CMOS
Effective Pixels:	\|	1280(H) × 720(V)/1920(H) × 1080(V)
Signal System:	\|	PAL/NTSC
Minimum Illumination:	\|	F2.0, 1/1 sec, 50 IRE, AGC On : Color : 0.05 lux, B/W : 0.01 lux F2.0,1/30 sec, 50 IRE, AGC On: Color : 0.1 lux, B/W : 0.01 lux
White Balance:	\|	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:	\|	Auto/Manual
S/N Ratio:	\|	≥ 52dB
BLC:	\|	ON/OFF
HLC:	\|	Support
WDR:	\|	Support
Shutter Time:	\|	1/1~1/10,000s
Day& Night:	\|	ICR
Digital Zoom:	\|	16X
Privacy Masking:	\|	8 privacy masks programmable
Auto Focus:	\|	Auto / Semi-automatic / Manual
Lens
Focal Length:	\|	3.6~11mm, 3x(DS-2DE2103-DE3/W) 3.6~8.6mm, 2x(DS-2DE2202-DE3/W)
Zoom Speed:	\|	Approx.1s(Wide~Tele)
Angle of View:	\|	80~33 degree, 3x(DS-2DE2103-DE3/W) 80-64.5 degree, 2x(DS-2DE2202-DE3/W)
Aperture Range:	\|	F2.0
Pan & Tilt
Pan Range:	\|	Pan: 0~350°
Pan Speed:	\|	Pan Manual Speed: 0.1°~100°/s, Pan Preset Speed: 100°/s
Tilt Range:	\|	Tilt: 0°~90°
Tilt Speed:	\|	Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s
Number of Preset:	\|	300
Power loss recovery:	\|	Support
Park Action:	\|	Preset
PTZ Position Display:	\|	ON/OFF
Alarm
Alarm Input:	\|	1channels input
Alarm Output:	\|	1 channels output
Alarm Actions:	\|	Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage
Input & Output
Audio Input:	\|	1 built-in microphone; 1 audio input (Mic/Line in), 2~2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output:	\|	1 Audio output interface Line level, impedance: 600Ω
Network
Ethernet:	\|	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:	\|	DS-2DE2103-DE3/W:1280×720; DS-2DE2202-DE3/W: 1920×1080
Frame Rate:	\|	DS-2DE2103-DE3/W: 50Hz: 25 fps (1280×720); 60Hz: 30 fps (1280×720) DS-2DE2202-DE3/W: 50Hz: 25 fps (1920×1080); 60Hz: 30 fps (1920×1080)
Main Stream:	\|	DS-2DE2103-DE3/W: 50Hz: 25 fps (1280×720), 60Hz: 30 fps (1280×720); DS-2DE2202-DE3/W: 50Hz: 25 fps (1920×1080), 60Hz: 30 fps (1920×1080)
Third Stream:	\|	50Hz:25fps(704×576), 25fps(352×288), 25fps(320×240) 60Hz:30fps(704×480), 30fps(352×240), 30fps(320×240)
Image Compression:	\|	H.264 / MJPEG
ROI encoding:	\|	Support 2 areas with adjustable levels
Audio Compression:	\|	G.711ulaw/G.711alaw/G.726/MP2L2
Protocols:	\|	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users:	\|	Up to 20 users
Dual Stream:	\|	Support
Mini SD Card:	\|	Support up to 64GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level:	\|	Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures:	\|	User authentication (ID and PW), Host authentication (MAC address) IP address filtering
EZVIZ:	\|	Support
Client GUI
Date & Time Display:	\|	Time: Week: Date, 6 formats on the Client
Client:	\|	Support iVMS-4200
Web Browser:	\|	IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
General
Menu Language:	\|	English
Power Supply:	\|	12V DC or PoE(Power over Ethernet)
Power Consumption:	\|	Max. 5.5W
Working Temperature/Humidity:	\|	-10?~50?(14?~122?)(indoor dome)
Protection Level:	\|	IP54, TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting:	\|	Various mounting modes optional
Dimensions:	\|	Φ120×83.7mm
Weight (approx.):	\|	600g
Mount Option:	\|	Wall mount: DS-1294ZJ, Junction box: DS-1280ZJ-PT3
